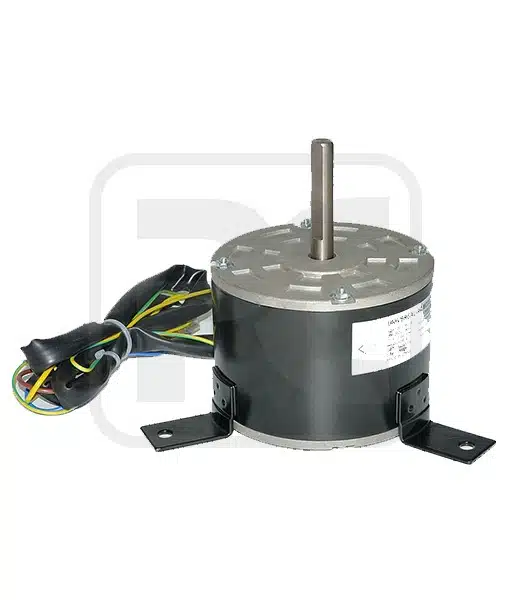

1600RPM 3 Speed Electric Motor Customized Indoor AC Fan Motor Double Shaft

1.The ambient temperature of the shaded-pole motor is -25°C~ 50°C, the insulation class is class B, protection grade is IP42, and it has widely used in condensers,evaporators and other equipment. There is a ground line in each motor.
2. Motor has impedeance protection if the output is blow 10W, and we install thermal protection(130 °C ~140 °C ) to protect the motor if the output is more than 10W.
3. There are screw holes on the end cover; bracket installation; grid installaton; flange installation; also we can customize according to your request.
4. We can custom-made motor with different voltage, frequency, wire length, bearing, special use of the environmet etc.

Availability: In Stock

Products details:

Model Number Voltage

/V

 Frequency

/Hz

 Output Power

/W

 Rated Speed

/RPM

 Capacitor

/μF
YSK120-37-4A 220-240 50 37 1350/3 SPD 3/370
YSK120-40-4A3 220-240 50 40 1100/3 SPD 3/370
YSK120-50-4A2 220-240 50 50 1300/3 SPD 3/400
YSK120-64-4A 220-240 50 64 1320/3 SPD 3/400
YSK120-90-4A 220-240 60 90 1600/3 SPD 4/370
YSK120-90-4A4 220-240 50 90 1300/3 SPD 5/370
YSK120-90-4A5 220-240 50 90 1175/3 SPD 4/370
YSK120-120-4A 220-240 60 120 1300/4 SPD 3/370
YSK120-185-4A 220-240 60 185 1625/3 SPD 7.5/370
Show More
