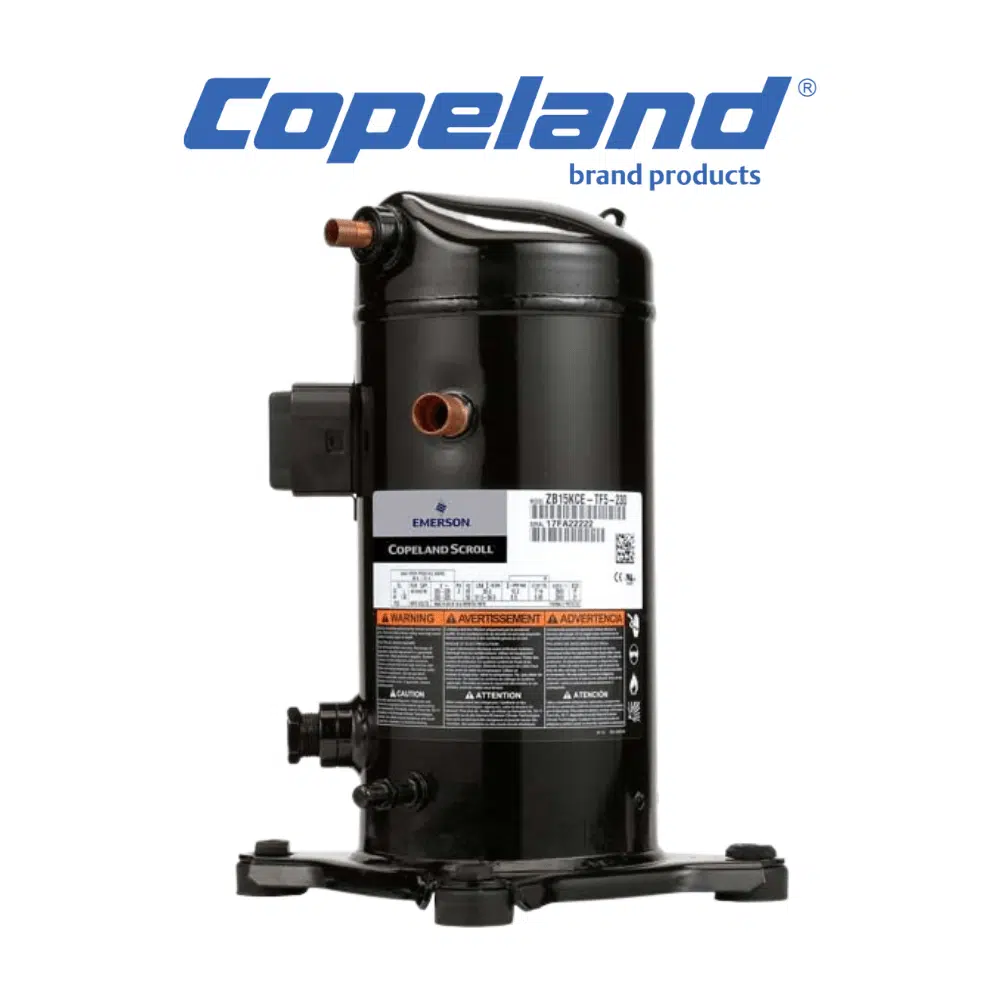

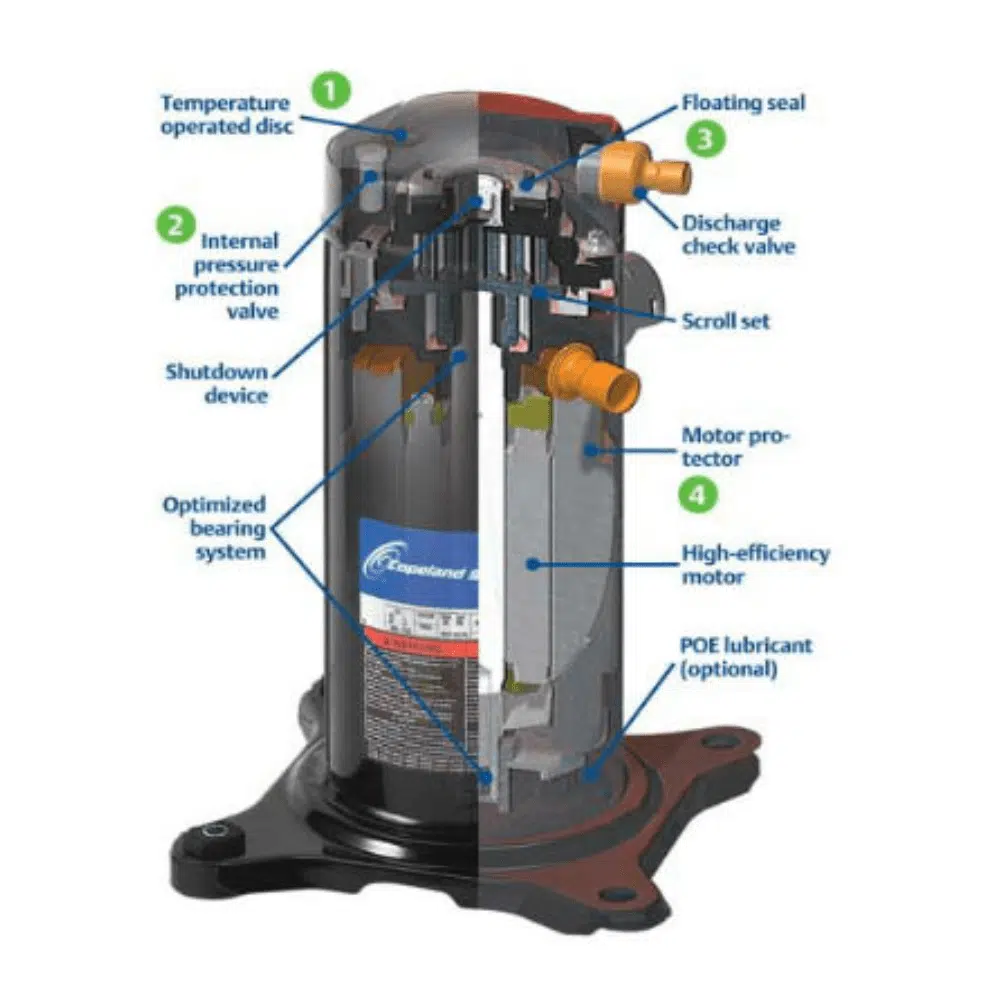

Compressor Copeland ZR61KCE & ZR Series Scroll
Compressor Copeland USA ZR Series Scroll is the end product of large-scale research and development efforts underway since 1979. These efforts have led to the production of the most advanced scroll compressor design currently available for air-conditioning, heat pump and medium temperature applications.
Copeland ZR Series Scroll compressors are chosen over other compressor technologies for various reasons: lower sound, superior efficiency and reliability, compatibility with heat pump applications and ease of design.
Compressor Copeland USA ZR Series Scroll Key Features :
- Suitable for R22/R407C air conditioning applications
- R134a applications
- Charged with Polyolester oil
- Rotalock valves & electrical accessories to be ordered separately
- Anti-vibration mounts supplied
Product Range Available :
| ZR 19 | ZR 40 | ZR 81 | ZR 160 |
| ZR 22 | ZR 42 | ZR 94 | ZR 190 |
| ZR 26 | ZR 57 | ZR 108 | ZR 250 |
| ZR 28 | ZR 61 | ZR 125 | ZR 310 |
| ZR 32 | ZR 72 | ZR 144 | ZR 380 |
Single Phase Stub Connection
General
Connections
Nominal Current
| Model No. | Electrical Supply: Volts/Ph. | Displacement: m3/hr | R22 Nominal Capacity: Watts @ 7.2C | Replacement Oil Charge: litres | Weight: kg |
| ZR22K3E-PFJ-522 | 240/1 | 5.34 | 5350 | 1.01 | 25.9 |
| ZR24K3E-PFJ-522 | 240/1 | 5.92 | 5900 | 1.01 | 25 |
| ZR28K3E-PFJ-522 | 240/1 | 6.83 | 6900 | 1.01 | 27.2 |
| ZR34K3E-PFJ-522 | 240/1 | 8.03 | 8250 | 1.12 | 28.6 |
| ZR36K3E-PFJ-522 | 240/1 | 8.61 | 8850 | 1.12 | 29.5 |
| ZR40K3E-PFJ-522 | 240/1 | 9.43 | 9760 | 1.12 | 29.9 |
| ZR42K3E-PFJ-522 | 240/1 | 9.95 | 10250 | 1.12 | 30.4 |
| ZR47K3E-PFJ-522 | 240/1 | 11.02 | 11500 | 1.12 | 32.2 |
| ZR48K3E-PFJ-522 | 240/1 | 11.4 | 11400 | 1.12 | 31.1 |
| ZR61KCE-PFZ-522 | 240/1 | 14.37 | 14900 | 1.54 | 41.3 |
| ZR68KCE-PFJ-522 | 240/1 | 16.18 | 16700 | 1.72 | 42.6 |
Three Phase Stub Connection
General
Connections
Nominal Current
Replaces
| Model No. | Electrical Supply: Volts/Ph. | Displacement: m3/hr | R22 Nominal Capacity: Watts @ 7.2C | Replacement Oil Charge: litres | Weight: kg |
| ZR28K3E-TFD-522 | 415/3 | 6.83 | 6900 | 1.01 | 25.4 |
| ZR40K3E-TFD-522 | 415/3 | 9.43 | 10300 | 1.12 | 27.7 |
| ZR47KCE-TFD-522 | 415/3 | 11.16 | 11500 | 1.24 | 29.9 |
| ZR48KCE-TFD-522 | 415/3 | 11.4 | 11850 | 1.24 | 28.1 |
| ZR54KCE-TFD-522 | 415/3 | 12.74 | 13200 | 1.83 | 35.8 |
| ZR57KCE-TFD-522 | 415/3 | 13.43 | 13900 | 1.83 | 36.3 |
| ZR61KCE-TFD-522 | 415/3 | 14.37 | 14900 | 1.83 | 37.2 |
| ZR68KCE-TFD-522 | 415/3 | 16.18 | 16800 | 1.66 | 38.6 |
| ZR72KCE-TFD-522 | 415/3 | 17.06 | 17700 | 1.66 | 38.6 |
| ZR81KCE-TFD-522 | 415/3 | 18.75 | 19900 | 1.66 | 39.9 |
| ZR94KCE-TFD-522 | 415/3 | 22.1 | 23300 | 2.4 | 57.2 |
| ZR108KCE-TFD-522 | 415/3 | 24.9 | 26400 | 3.13 | 60.3 |
| ZR125KCE-TFD-522 | 415/3 | 29.1 | 31100 | 3.13 | 61.2 |
| ZR144KCE-TFD-522 | 415/3 | 33.2 | 35200 | 3.13 | 61.2 |
| ZR160KCE-TFD-522 | 415/3 | 36.4 | 37700 | 3.38 | 64.9 |
| ZR190KCE-TFD-522 | 415/3 | 43.3 | 45900 | 3.38 | 66.2 |
Three Phase Rotalock Connection
- Rotalock valves to be ordered separately
General
Connections
Nominal Current
Replaces
| Model No. | Electrical Supply: Volts/Ph. | Displacement: m3/hr | R22 Nominal Capacity: Watts @ 7.2C | Replacement Oil Charge: litres | Weight: kg |
| ZR94KCE-TFD-523 | 415/3 | 22.1 | 23300 | 2.4 | 57.2 |
| ZR108KCE-TFD-523 | 415/3 | 24.9 | 26400 | 3.13 | 60.3 |
| ZR125KCE-TFD-523 | 415/3 | 29.1 | 31100 | 3.13 | 61.2 |
| ZR144KCE-TFD-523 | 415/3 | 33.2 | 35200 | 3.13 | 61.2 |
| ZR160KCE-TFD-523 | 415/3 | 36.4 | 37700 | 3.38 | 64.9 |
| ZR190KCE-TFD-523 | 415/3 | 43.3 | 45900 | 3.38 | 66.2 |
| ZR250KCE-TWD-523 | 415/3 | 56.6 | 56600 | 4.7 | 140 |
Tandem Ready
These tandem ready scroll compressors are similar to the standard ZR compressors but include additional connection points that are required for use in tandem operation.
General
Connections
Nominal Current
| Model No. | Electrical Supply: Volts/Ph. | Displacement: m3/hr | Replacement Oil Charge: litres | Weight: kg |
| ZR54KCE-TFD-422 | 415/3 | 12.74 | 1.83 | 35.8 |
| ZR61KCE-TFD-422 | 415/3 | 14.37 | 1.83 | 37.2 |
| ZR81KCE-TFD-422 | 415/3 | 18.75 | 1.66 |
